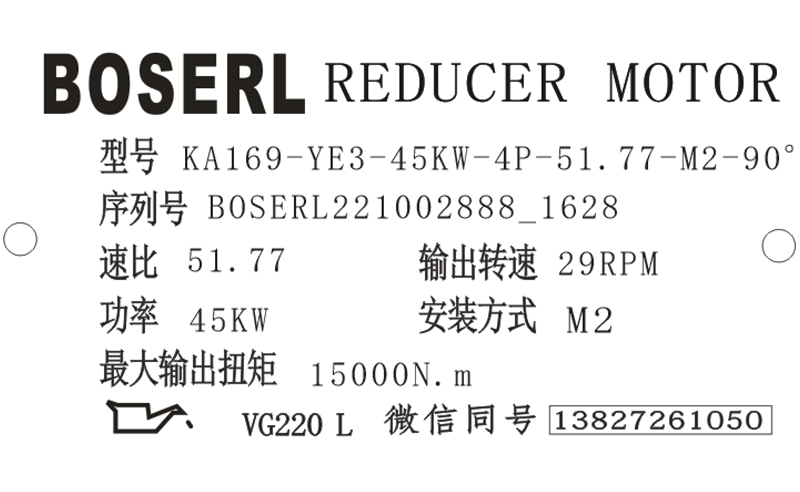

KA169減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA169減速機選型樣本。

KA169-YE3-45KW-4P-51.77-M2-90°

KA：系列代號

169：減速機規格代號

YE3：電機

45KW：電機功率

4P：電機級數

51.77：減速機傳動比

M2：減速機安裝位置

90°：接線盒位置

KA169減速機空心軸扭矩臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA169減速機的扭矩臂安裝示意圖：兩面均安裝支架，連接面B與連接A對稱安裝。齒輪減速電機

KA169減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA169減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機

KA169減速機型號：

WKA167-Y110SKA，WKA167-Y11SKA，WKA167-Y132SKA，WKA167-Y15SKA，WKA167-Y160SKA，WKA167-Y160M4，WKA167-Y18.5SKA，WKA167-Y180M4，WKA167-Y200SKA，WKA167-Y200M4，WKA167-Y225M4，WKA167-Y22SKA，WKA167-Y250M4，WKA167-Y280M4，WKA167-Y30SKA，WKA167-Y315M4，WKA167-Y37SKA，WKA167-Y45SKA，WKA167-Y55SKA，WKA167-Y75SKA，WKA167-Y90SKA，WKA167-YB160M4，WKA167-YB180M4，WKA167-YB200M4，WKA167-YB225M4，WKA167-YB250M4，WKA167-YB280M4，WKA167-YB315M4，WKA167-YDP160M4，WKA167-YDP180M4，WKA167-YDP200M4，WKA167-YDP225M4，WKA167-YDP250M4，WKA167-YDP280M4，WKA167-YDP315M4，WKA167-YE160M4，WKA167-YE180M4，WKA167-YE200M4，WKA167-YE225M4，WKA167-YE250M4，WKA167-YE280M4，WKA167-YE315M4，WKA167-YEJ160M4，WKA167-YEJ180M4，WKA167-YEJ200M4，WKA167-YEJ225M4，WKA167-YEJ250M4，WKA167-YEJ280M4，WKA167-YEJ315M4，WKA167-YEJB160M4，WKA167-YEJB180M4，WKA167-YEJB200M4，WKA167-YEJB225M4，WKA167-YEJB250M4，WKA167-YEJB280M4，WKA167-YEJB315M4，WKA167-YP160M4，WKA167-YP180M4，WKA167-YP200M4，WKA167-YP225M4，WKA167-YP250M4，WKA167-YP280M4，WKA167-YP315M4，WKA167-YPB160M4，WKA167-YPB180M4，WKA167-YPB200M4，WKA167-YPB225M4，WKA167-YPB250M4，WKA167-YPB280M4，WKA167-YPB315M4，WKA167-YPE160M4，WKA167-YPE180M4，WKA167-YPE200M4，WKA167-YPE225M4，WKA167-YPE250M4，WKA167-YPE280M4，WKA167-YPE315M4，WKA167-YS160M4，WKA167-YS180M4，WKA167-YS200M4，WKA167-YS225M4，WKA167-YS250M4，WKA167-YS280M4，WKA167-YS315M4，WKA167-YVB160M4，WKA167-YVB180M4，WKA167-YVB200M4，WKA167-YVB225M4，WKA167-YVB250M4，WKA167-YVB280M4，WKA167-YVB315M4，WKA167-YVP160M4，WKA167-YVP180M4，WKA167-YVP200M4，WKA167-YVP225M4，WKA167-YVP250M4，WKA167-YVP280M4，WKA167-YVP315M4，WKA167-YVPEJ160M4，WKA167-YVPEJ180M4，WKA167-YVPEJ200M4，WKA167-YVPEJ225M4，WKA167-YVPEJ250M4，WKA167-YVPEJ280M4，WKA167-YVPEJ315M4，AKA167-Y110SKA，AKA167-Y11SKA，AKA167-Y132SKA，AKA167-Y15SKA，AKA167-Y160SKA，AKA167-Y160M4，AKA167-Y18.5SKA，AKA167-Y180M4，AKA167-Y200SKA，AKA167-Y200M4，AKA167-Y225M4，AKA167-Y22SKA，AKA167-Y250M4，AKA167-Y280M4，AKA167-Y30SKA，AKA167-Y315M4，AKA167-Y37SKA，AKA167-Y45SKA，AKA167-Y55SKA，AKA167-Y75SKA，AKA167-Y90SKA，AKA167-YB160M4，AKA167-YB180M4，AKA167-YB200M4，AKA167-YB225M4，AKA167-YB250M4，AKA167-YB280M4，AKA167-YB315M4，AKA167-YDP160M4，AKA167-YDP180M4，AKA167-YDP200M4，AKA167-YDP225M4，AKA167-YDP250M4，AKA167-YDP280M4，AKA167-YDP315M4，AKA167-YE160M4，AKA167-YE180M4，AKA167-YE200M4，AKA167-YE225M4，AKA167-YE250M4，AKA167-YE280M4，AKA167-YE315M4，AKA167-YEJ160M4，AKA167-YEJ180M4，AKA167-YEJ200M4，AKA167-YEJ225M4，AKA167-YEJ250M4，AKA167-YEJ280M4，AKA167-YEJ315M4，AKA167-YEJB160M4，AKA167-YEJB180M4，AKA167-YEJB200M4，AKA167-YEJB225M4，AKA167-YEJB250M4，AKA167-YEJB280M4，AKA167-YEJB315M4，AKA167-YP160M4，AKA167-YP180M4，AKA167-YP200M4，AKA167-YP225M4，AKA167-YP250M4，AKA167-YP280M4，AKA167-YP315M4，AKA167-YPB160M4，AKA167-YPB180M4，AKA167-YPB200M4，AKA167-YPB225M4，AKA167-YPB250M4，AKA167-YPB280M4，AKA167-YPB315M4，AKA167-YPE160M4，AKA167-YPE180M4，AKA167-YPE200M4，AKA167-YPE225M4，AKA167-YPE250M4，AKA167-YPE280M4，AKA167-YPE315M4，AKA167-YS160M4，AKA167-YS180M4，AKA167-YS200M4，AKA167-YS225M4，AKA167-YS250M4，AKA167-YS280M4，AKA167-YS315M4，AKA167-YVB160M4，AKA167-YVB180M4，AKA167-YVB200M4，AKA167-YVB225M4，AKA167-YVB250M4，AKA167-YVB280M4，AKA167-YVB315M4，AKA167-YVP160M4，AKA167-YVP180M4，AKA167-YVP200M4，AKA167-YVP225M4，AKA167-YVP250M4，AKA167-YVP280M4，AKA167-YVP315M4，AKA167-YVPEJ160M4，AKA167-YVPEJ180M4，AKA167-YVPEJ200M4，AKA167-YVPEJ225M4，AKA167-YVPEJ250M4，AKA167-YVPEJ280M4，AKA167-YVPEJ315M4，NKA167-Y110SKA，NKA167-Y11SKA，NKA167-Y132SKA，NKA167-Y15SKA，NKA167-Y160SKA，NKA167-Y160M4，NKA167-Y18.5SKA，NKA167-Y180M4，NKA167-Y200SKA，NKA167-Y200M4，NKA167-Y225M4，NKA167-Y22SKA，NKA167-Y250M4，NKA167-Y280M4，NKA167-Y30SKA，NKA167-Y315M4，NKA167-Y37SKA，NKA167-Y45SKA，NKA167-Y55SKA，NKA167-Y75SKA，NKA167-Y90SKA，NKA167-YB160M4，NKA167-YB180M4，NKA167-YB200M4，NKA167-YB225M4，NKA167-YB250M4，NKA167-YB280M4，NKA167-YB315M4，NKA167-YDP160M4，NKA167-YDP180M4，NKA167-YDP200M4，NKA167-YDP225M4，NKA167-YDP250M4，NKA167-YDP280M4，NKA167-YDP315M4，NKA167-YE160M4，NKA167-YE180M4，NKA167-YE200M4，NKA167-YE225M4，NKA167-YE250M4，NKA167-YE280M4，NKA167-YE315M4，NKA167-YEJ160M4，NKA167-YEJ180M4，NKA167-YEJ200M4，NKA167-YEJ225M4，NKA167-YEJ250M4，NKA167-YEJ280M4，NKA167-YEJ315M4，NKA167-YEJB160M4，NKA167-YEJB180M4，NKA167-YEJB200M4，NKA167-YEJB225M4，NKA167-YEJB250M4，NKA167-YEJB280M4，NKA167-YEJB315M4，NKA167-YP160M4，NKA167-YP180M4，NKA167-YP200M4，NKA167-YP225M4，NKA167-YP250M4，NKA167-YP280M4，NKA167-YP315M4，NKA167-YPB160M4，NKA167-YPB180M4，NKA167-YPB200M4，NKA167-YPB225M4，NKA167-YPB250M4，NKA167-YPB280M4，NKA167-YPB315M4，NKA167-YPE160M4，NKA167-YPE180M4，NKA167-YPE200M4，NKA167-YPE225M4，NKA167-YPE250M4，NKA167-YPE280M4，NKA167-YPE315M4，NKA167-YS160M4，NKA167-YS180M4，NKA167-YS200M4，NKA167-YS225M4，NKA167-YS250M4，NKA167-YS280M4，NKA167-YS315M4，NKA167-YVB160M4，NKA167-YVB180M4，NKA167-YVB200M4，NKA167-YVB225M4，NKA167-YVB250M4，NKA167-YVB280M4，NKA167-YVB315M4，NKA167-YVP160M4，NKA167-YVP180M4，NKA167-YVP200M4，NKA167-YVP225M4，NKA167-YVP250M4，NKA167-YVP280M4，NKA167-YVP315M4，NKA167-YVPEJ160M4，NKA167-YVPEJ180M4，NKA167-YVPEJ200M4，NKA167-YVPEJ225M4，NKA167-YVPEJ250M4，NKA167-YVPEJ280M4，NKA167-YVPEJ315M4，SKA167-Y110SKA，SKA167-Y11SKA，SKA167-Y132SKA，SKA167-Y15SKA，SKA167-Y160SKA，SKA167-Y160M4，SKA167-Y18.5SKA，SKA167-Y180M4，SKA167-Y200SKA，SKA167-Y200M4，SKA167-Y225M4，SKA167-Y22SKA，SKA167-Y250M4，SKA167-Y280M4，SKA167-Y30SKA，SKA167-Y315M4，SKA167-Y37SKA，SKA167-Y45SKA，SKA167-Y55SKA，SKA167-Y75SKA，SKA167-Y90SKA，SKA167-YB160M4，SKA167-YB180M4，SKA167-YB200M4，SKA167-YB225M4，SKA167-YB250M4，SKA167-YB280M4，SKA167-YB315M4，SKA167-YDP160M4，SKA167-YDP180M4，SKA167-YDP200M4，SKA167-YDP225M4，SKA167-YDP250M4，SKA167-YDP280M4，SKA167-YDP315M4，SKA167-YE160M4，SKA167-YE180M4，SKA167-YE200M4，SKA167-YE225M4，SKA167-YE250M4，SKA167-YE280M4，SKA167-YE315M4，SKA167-YEJ160M4，SKA167-YEJ180M4，SKA167-YEJ200M4，SKA167-YEJ225M4，SKA167-YEJ250M4，SKA167-YEJ280M4，SKA167-YEJ315M4，SKA167-YEJB160M4，SKA167-YEJB180M4，SKA167-YEJB200M4，SKA167-YEJB225M4，SKA167-YEJB250M4，SKA167-YEJB280M4，SKA167-YEJB315M4，SKA167-YP160M4，SKA167-YP180M4，SKA167-YP200M4，SKA167-YP225M4，SKA167-YP250M4，SKA167-YP280M4，SKA167-YP315M4，SKA167-YPB160M4，SKA167-YPB180M4，SKA167-YPB200M4，SKA167-YPB225M4，SKA167-YPB250M4，SKA167-YPB280M4，SKA167-YPB315M4，SKA167-YPE160M4，SKA167-YPE180M4，SKA167-YPE200M4，SKA167-YPE225M4，SKA167-YPE250M4，SKA167-YPE280M4，SKA167-YPE315M4，SKA167-YS160M4，SKA167-YS180M4，SKA167-YS200M4，SKA167-YS225M4，SKA167-YS250M4，SKA167-YS280M4，SKA167-YS315M4，SKA167-YVB160M4，SKA167-YVB180M4，SKA167-YVB200M4，SKA167-YVB225M4，SKA167-YVB250M4，SKA167-YVB280M4，SKA167-YVB315M4，SKA167-YVP160M4，SKA167-YVP180M4，SKA167-YVP200M4，SKA167-YVP225M4，SKA167-YVP250M4，SKA167-YVP280M4，SKA167-YVP315M4，SKA167-YVPEJ160M4，SKA167-YVPEJ180M4，SKA167-YVPEJ200M4，SKA167-YVPEJ225M4，SKA167-YVPEJ250M4，SKA167-YVPEJ280M4，SKA167-YVPEJ315M4，GKA169-Y110SKA，GKA169-Y11SKA，GKA169-Y132SKA，GKA169-Y15SKA，GKA169-Y160SKA，GKA169-Y160M4，GKA169-Y18.5SKA，GKA169-Y180M4，GKA169-Y200SKA，GKA169-Y200M4，GKA169-Y225M4，GKA169-Y22SKA，GKA169-Y250M4，GKA169-Y280M4，GKA169-Y30SKA，GKA169-Y315M4，GKA169-Y37SKA，GKA169-Y45SKA，GKA169-Y55SKA，GKA169-Y75SKA，GKA169-Y90SKA，GKA169-YB160M4，GKA169-YB180M4，GKA169-YB200M4，GKA169-YB225M4，GKA169-YB250M4，GKA169-YB280M4，GKA169-YB315M4，GKA169-YDP160M4，GKA169-YDP180M4，GKA169-YDP200M4，GKA169-YDP225M4，GKA169-YDP250M4，GKA169-YDP280M4，GKA169-YDP315M4，GKA169-YE160M4，GKA169-YE180M4，GKA169-YE200M4，GKA169-YE225M4，GKA169-YE250M4，GKA169-YE280M4，GKA169-YE315M4，GKA169-YEJ160M4，GKA169-YEJ180M4，GKA169-YEJ200M4，GKA169-YEJ225M4，GKA169-YEJ250M4，GKA169-YEJ280M4，GKA169-YEJ315M4，GKA169-YEJB160M4，GKA169-YEJB180M4，GKA169-YEJB200M4，GKA169-YEJB225M4，GKA169-YEJB250M4，GKA169-YEJB280M4，GKA169-YEJB315M4，GKA169-YP160M4，GKA169-YP180M4，GKA169-YP200M4，GKA169-YP225M4，GKA169-YP250M4，GKA169-YP280M4，GKA169-YP315M4，GKA169-YPB160M4，GKA169-YPB180M4，GKA169-YPB200M4，GKA169-YPB225M4，GKA169-YPB250M4，GKA169-YPB280M4，GKA169-YPB315M4，GKA169-YPE160M4，GKA169-YPE180M4，GKA169-YPE200M4，GKA169-YPE225M4，GKA169-YPE250M4，GKA169-YPE280M4，GKA169-YPE315M4，GKA169-YS160M4，GKA169-YS180M4，GKA169-YS200M4，GKA169-YS225M4，GKA169-YS250M4，GKA169-YS280M4，GKA169-YS315M4，GKA169-YVB160M4，GKA169-YVB180M4，GKA169-YVB200M4，GKA169-YVB225M4，GKA169-YVB250M4，GKA169-YVB280M4，GKA169-YVB315M4，GKA169-YVP160M4，GKA169-YVP180M4，GKA169-YVP200M4，GKA169-YVP225M4，GKA169-YVP250M4，GKA169-YVP280M4，GKA169-YVP315M4，GKA169-YVPEJ160M4，GKA169-YVPEJ180M4，GKA169-YVPEJ200M4，GKA169-YVPEJ225M4，GKA169-YVPEJ250M4，GKA169-YVPEJ280M4，GKA169-YVPEJ315M4。

KA169減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.citraemu.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K169減速機
